Model :CUV-10-3WAY
Keyword :Cuvette holder Absorbance/Transmittance/Absorption
400-820-7939
Technical Support：021-50687686

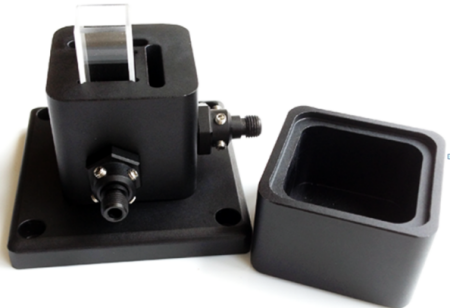

CUV - 10-3 way than color dish holder is equipped with three quartz collimating lens focal length of 10 mm, with spectrometer and light source, the CUV - 10-3 way to measure the absorbance and fluorescence scattering spectrum measurement.
Cuv-10-3way can configure filters with different wavelength range to complete fluorescence test according to customer requirements. Required filter size: 8mm in diameter and no more than 2.5mm in thickness.
◆ Three f/2 quartz collimating lenses, UV up to 180nm;
◆ Matching color plate with 10mm optical path;
◆ The wavelength range can be measured as 200nm-2 m;
◆ Insert filter design, wavelength selection is more convenient;
◆ The cap design can effectively avoid the influence of ambient light on the detection.
Specification |
|
| Item | Value |
| Optical path | 10mm |
| Collimating lens configuration | Three COL-UV-10（200 nm-2μm） |
| Optical fiber interface | SMA 905 |
| Colorimetric dish size | 12.5x12.5x45mm |
| Fiber optics are recommended | 600μm?optical fiber |
| Beam diameter | 5mm |
| Optical filter | Customizable |
