Model :WR-D97-100
Keyword : standard whiteboard, diffuse standard board φ100mm
400-820-7939
Technical Support：021-50687686
WR series diffuse reflectance standard is made of modified PTFE, which is lambert-like diffuse reflection surface. The material of shell is anodized alumina. The boardWith washable, high reflectivity and good stability, it can be used in outdoor environment.
◆ Simple maintenance: PTFE material, washable;
◆ Surface damage, repairable;
◆ High reflectance: high diffuse reflection, visible segment ≥97%;
◆ High stability: long time use, reflectivity does not decline.
Specification |
|
| Item | Value |
| Product parameter | WR-D97-100 |
| Protective shell material | Metal aluminum box |
| Sheave diameter | 120mm |
| Inside diameter | 100mm |
| Thickness (mm) | 20mm |
| Spectrum range | 350~2000nm |

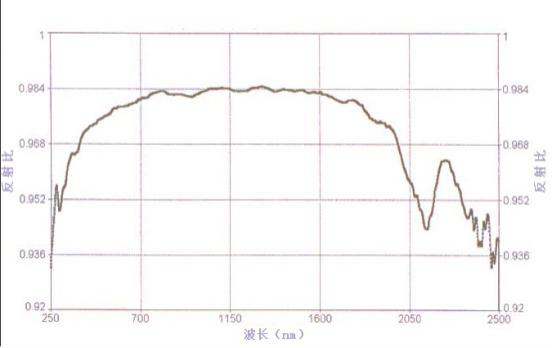

| Reflectivity | ≥92%@250-350/≥96%@350-1700/≥92%@1700-2500 |
