Model :CVT-751
Keyword :Four-sided cuvette, UV quartz glass, absorbance, transmittance, fluorescence spectrum
400-820-7939
Technical Support：021-50687686

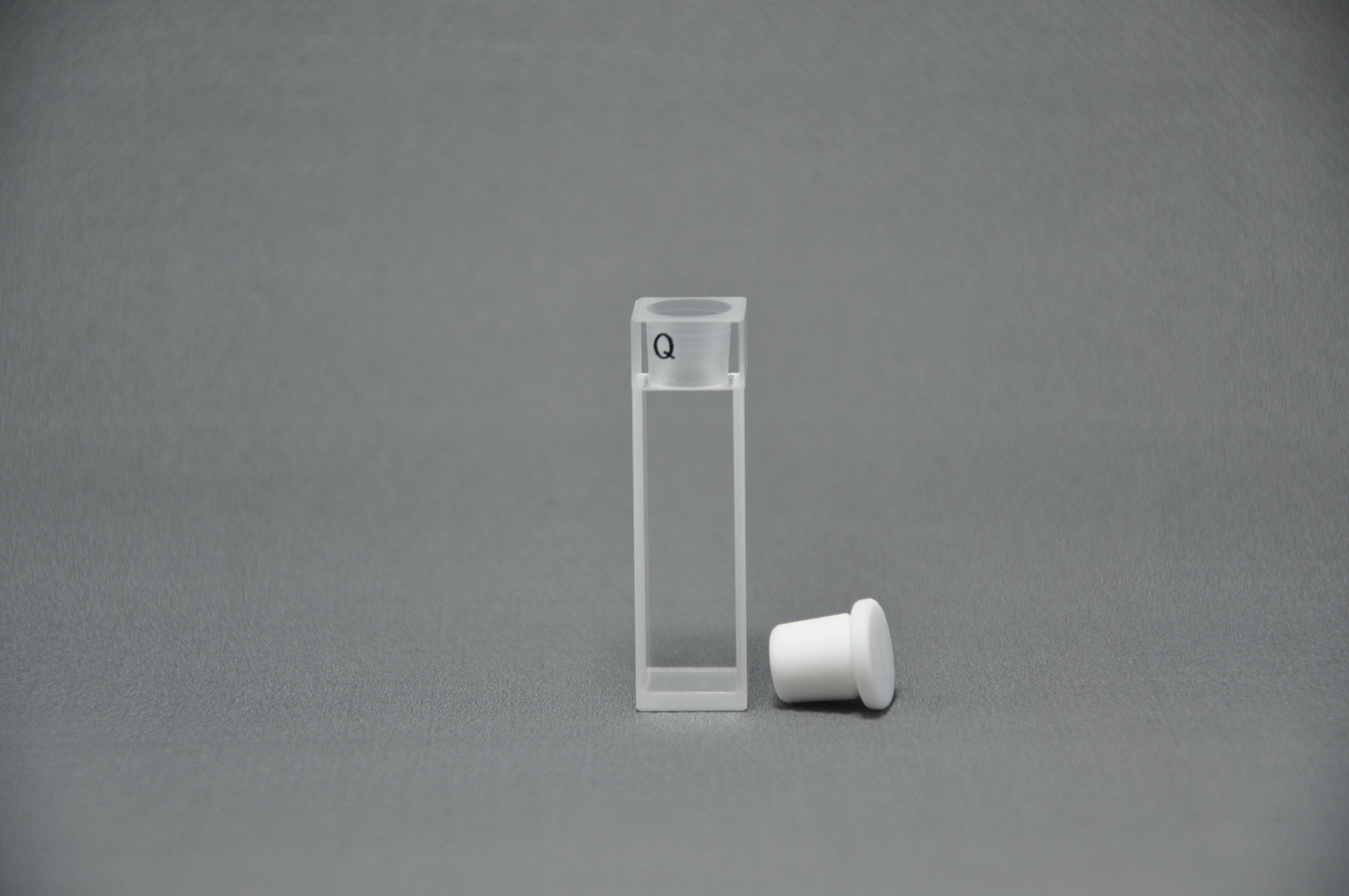

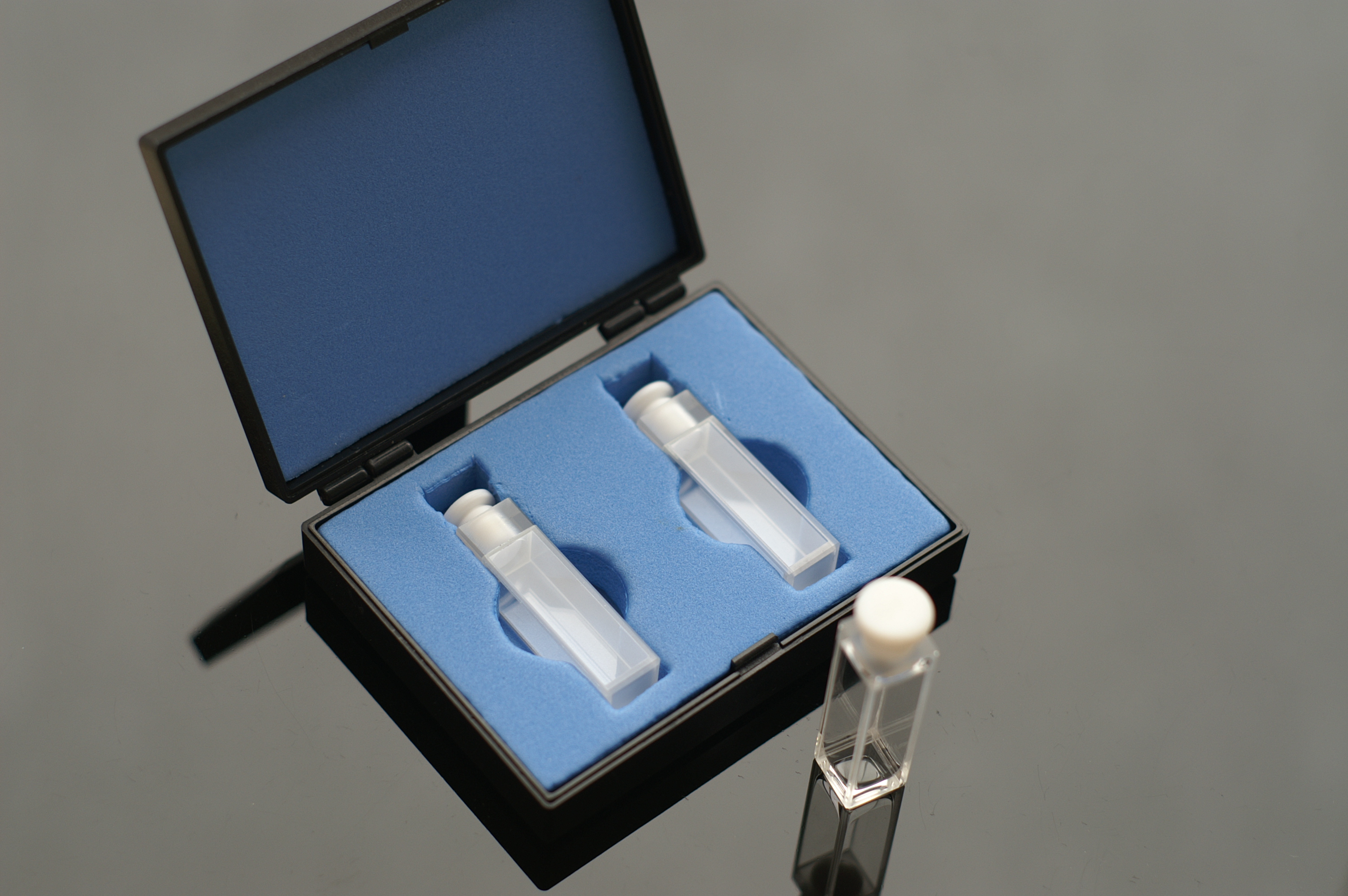

CVT-751 is a four-way colorimetric dish. Selected high quality ultraviolet quartz glass processing; Mainly used for liquid sample measurement; Supporting in the spectrum analysis instrument, quantitative and qualitative analysis of substances.
◆ Four-side all-pass colorimetric dish;
◆ Far ultraviolet quartz glass (JGS1);
◆ Good facial appearance: lambda /4@632.8nm;
◆ Minimum contour tolerance: +0.0/-0.1mm;
◆ Precise pairing error: < 0.5%;
◆ Optical path 10 mm.
Specification |
|
| Item | Value |
| Product parameter | CVT-751 |
| The optical direction | Four sides all-pass |
| Size | 45x12.5x12.5mm |
| Optical path | 10mm |
| Spectral range | 200-2500nm |
| Capacity | 1ml |
