Model :SA-Stage-C
Keyword :Reflective spectroscopy accessories
400-820-7939
Technical Support：021-50687686

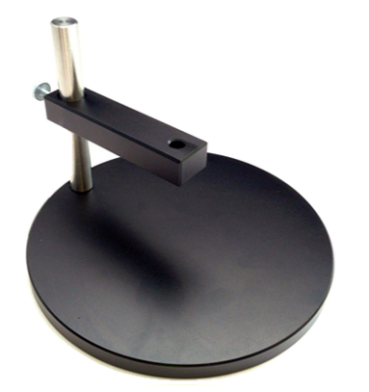

SA-stage-C single-point reflectance measurement bracket is a fixed reflectance optical fiber bracket, which is used for reflectance measurement of optical layer and other substrates with thickness up to 150mm. Suitable for fixing reflection fiber with diameter of 6.35mm and adjusting height of 80mm.
◆ Adjustable height up to 80mm；
◆ For measuring optical layers up to 150mm thick；
◆ Probe sampling bracket.
Specification |
|
| Item | Value |
| Product parameter | SA-Stage-C |
| Size | Φ150mm×thickness10mm |
| High | Vertical adjustable height 80mm |
| Material | Black anodized aluminum alloy |
| Adapted products | QR series reflective fiber |
| use | Specially designed for reflective fiber measurement, it can effectively fix the fiber and prevent human factors such as jitter from affecting the detection effect. |
