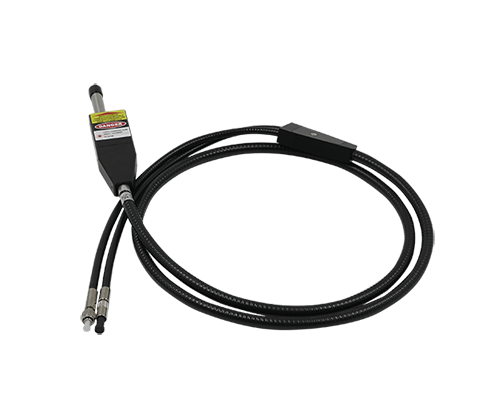

Model :FPB-405
Keyword :405nm，F(xiàn)luorescence probe, fluorescence spectrum
400-820-7939
Technical Support：021-50687686
Coaxial optical path design, coupling efficiency > 80%, tail fiber withstand 50N tension, FC/SMA905 standard interface, plug and pull consistency is good, fluorescence spectrum, experimental teaching.
◆ Spectrum range：415nm-1000nm；
◆ Cut-off depth：OD5；
◆ High sensitivity.
Specification |
|
| Item | Value |
| Dimension | FPB-405-1.5-FS |
| Outgoing fiber | 105μm Core diameter，VIS-NIR waveband |
| Receiving fiber | 200μm Core diameter，VIS-NIR?waveband |
| The armor size of the combined part | Φ8.5mm Metal sleeve，Outer black PVC |
| Optical fiber (combined beam segment) | 115cm±2cm |
| Optical fiber (beam splitting section) | 30cm±2cm |
| Connect laser terminal | FC/PC(Customizable) |
| Connect spectrometer terminal | SMA905(Customizable) |
| Laser wavelengh | 405nm |
| The tension 8.5mm sheath can withstand | 50N |
| Filter laser cutoff depth | OD５ |
| Spectrum range | 415nm-1000nm |
| Probe working distance | 7.5 mm(standard) |
| Probe shot coupling efficiency | ≥80% |
| Temperature | 0-80℃ |
| Humility | 5%-80% |
